Home >> Solar Panels >>Flexible Solar Panels >> 80W flexible Solar panel ETFE
Product Detail

80W flexible Solar panel ETFE

Collect
  • Solar panel

SUNWORLD Advantage & Benefits

1.12 years Solar Panel Manufacture in China
2.Factory Certify by ISO9001, SGS, CE, ROHS,IEC,TUV certification.

3.Excellent  anti-PID performance (EL) tests guarantee fault-free modules

4.2 manufacturing Basis, full automated production facilities.
5. High efficiency cell > 20% Sellected from German Qcells, USA SunPOWER,Taiwan Motech.

5.High salt and ammonia resistance.

ETFE layer Flexible Solar Panel

1.Dirt resistance, self-cleaning &less maintenance

2.Light transmittance up to 93% for high efficiency

3.Just 3mm thickness 1/10 weight of glass solar panel

4.UV resistant for longer life


ETFE flexible solar panel.jpg


Electrical characteristics
Module   ModelSWF80W
Max-Power Pm(W)80W
Moudle Efficiency21%
Max-Power Voltage   Vm(V)18.68V
Max-power current   Im(A)4.28A
Open-circuit voltage   Voc(V)22.32V
Short-circuit   current Isc(A)4.51A
Max-system voltage   (VDC)600V
Series fuse rating   (A)10A
Application ClassA
Operating   temperature (℃) -40℃+60℃
Power tolerance (%)±5%
Mechanical characteristics

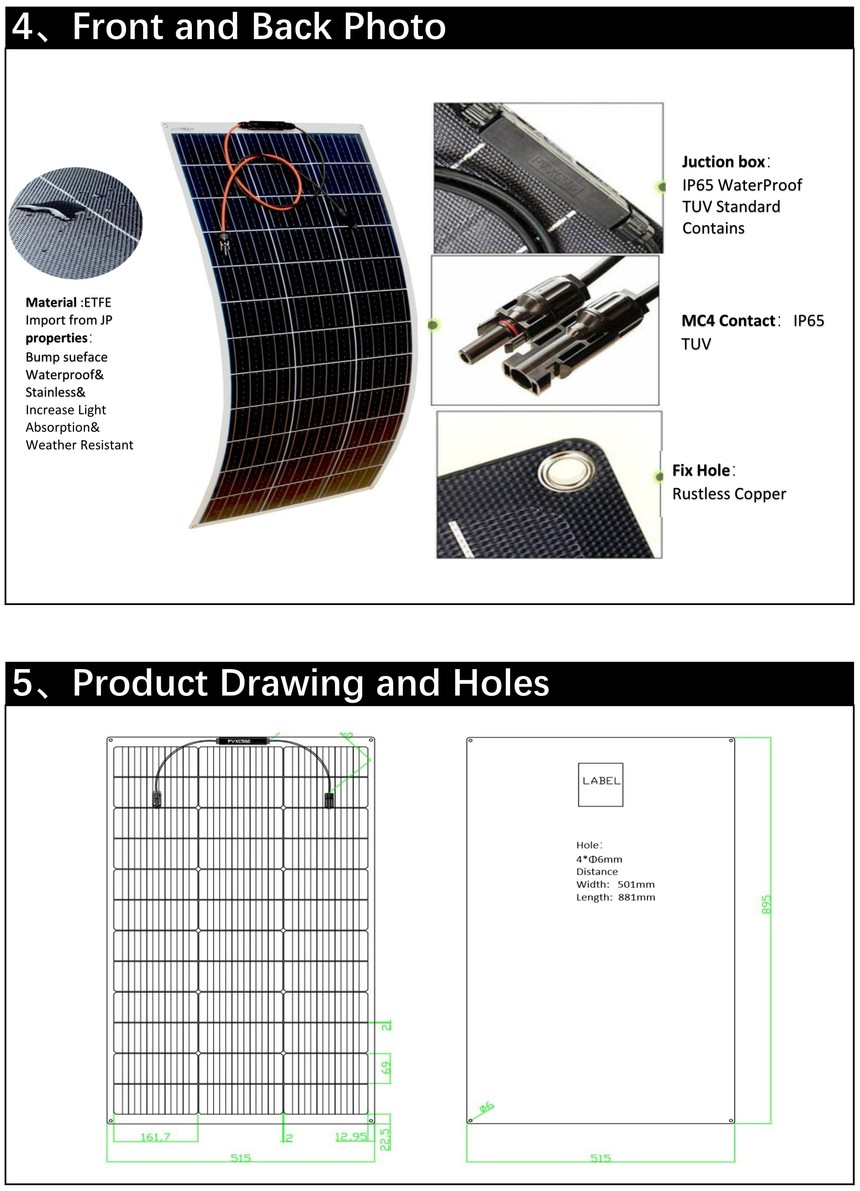

Dimension   of solar module995*515*3mm
Type of solar cell156*156 Mono Cells
Lay up of solar cell3*12=36 pcs
Front CoverETFE laminated
FrameNo
Protection DegreeIP67
Cable60 cm + MC4 connector
Diode ProtectionYes
Weight1.6Kg
Qty/CTN2 pc/Carton

Packing & Delivery


download .png
SunWorld 80W ETFE flexible Solar Panels

need quote.jpg

Contact :Brian

Sample Availability: IN STOCK.

Email:sales1@ecosolarpanel.com  Skype: ecosunworld

Wechat:+86-15916922738
