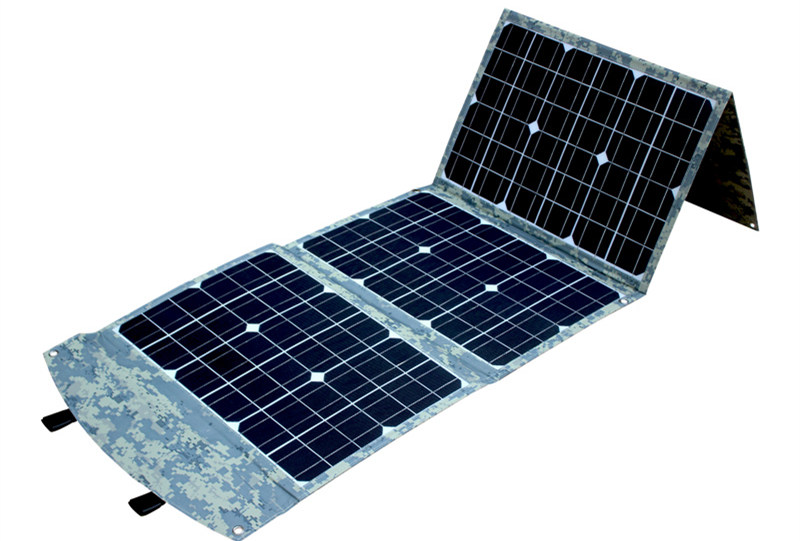

120W 60W solar foldable bag power kit on RV boat outdoor car

Model
Peak Power
Weight
Certification
Collect
  • 商品说明

SUNWORLD Advantage & Benefits

1.12 years Solar Panel Manufacture in China
2.Factory Certify by ISO9001, SGS, CE, ROHS,IEC,TUV certification.

3.Excellent  anti-PID performance (EL) tests guarantee fault-free modules

4.2 manufacturing Basis, full automated production facilities.
5. High efficiency cell > 20% Sellected from German Qcells, USA SunPOWER,Taiwan Motech.

6.High salt and ammonia resistance.

ETFE layer Flexible & Foldable Solar Bag

1.Dirt resistance, self-cleaning &less maintenance

2.Light transmittance up to 93% for high efficiency

3.Just 3mm thickness 1/10 weight of glass solar panel

4.UV resistant for longer life

120w solar foldable bag.jpg

Electrical characteristics
Module   ModelSWB120WSWB60W
Max-Power Pm(W)120W 30W*460W 30W*2
Moudle Efficiency22%22%
Max-Power Voltage  Output18.68V18.68V
Max-power current   Output6.42A3.21
USB Port5V2A 5V2A
DC Port DC 5521DC5521
Suitable for Direct to charge Mobile Phone, 5V digital, 18V output to charge 12V battery
Conversion plug10 in 1
Designe Support leg4 2
Operating   temperature (℃) -40℃+60℃
Power tolerance (%)±5%
Mechanical characteristics

ModelSWB120W
SWB60W
Foldable size 525*380*30mm525*380*15mm
Lay out size1700*525*10mm915*525*10mm
weight3.8kg1.9kg
Front CoverETFE laminated
FrameNo
Protection DegreeIP67
Cable3m + MC4 connector
Diode ProtectionYes
Qty/CTN1pc/Carton


×
