SUNWORLD Advantage & Benefits
1.12 years Solar Panel Manufacture in China
2.Factory Certify by ISO9001, SGS, CE, ROHS,IEC,TUV certification.
3.Excellent anti-PID performance (EL) tests guarantee fault-free modules
4.2 manufacturing Basis, full automated production facilities.
5. High efficiency cell > 20% Sellected from German Qcells, USA SunPOWER,Taiwan Motech.
6.High salt and ammonia resistance.

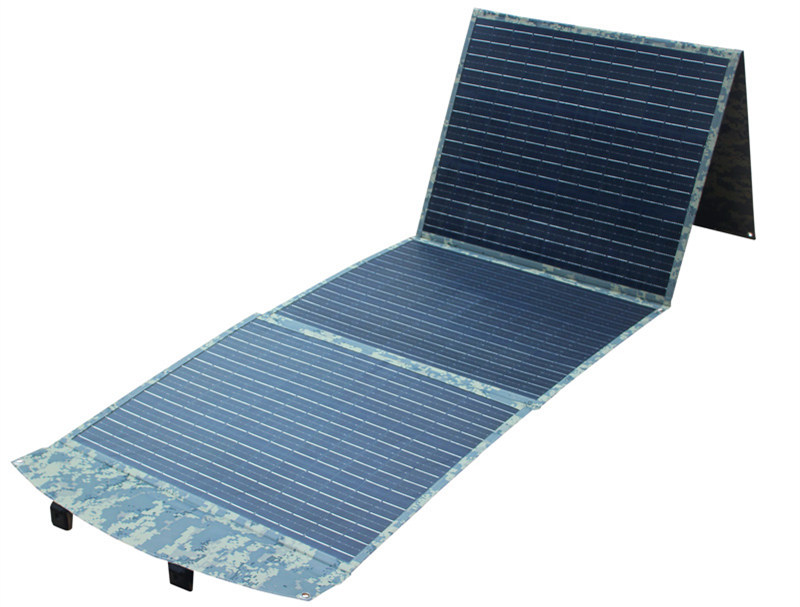

ETFE layer Flexible & Foldable Solar Bag
1.Dirt resistance, self-cleaning &less maintenance
2.Light transmittance up to 93% for high efficiency
3.Just 3mm thickness 1/10 weight of glass solar panel
4.UV resistant for longer life
Electrical characteristics
| Module Model | SWB200W | SWB100W |
| Max-Power Pm(W) | 200W 50W*4 | 100W 50W*2 |
| Moudle Efficiency | 22% | 22% |
| Max-Power Voltage Output | 18.68V | 18.68V |
| Max-power current Output | 10.62A | 5.31A |
| USB Port | No | 5V2A |
| DC Port | NO | 5521 |
| Suitable for | Direct to charge Mobile Phone, 5V digital, 18V output to charge 12V battery |
| Conversion plug | 10 in 1 |
| Designe Support leg | 4 | 2 |
| Operating temperature (℃) | -40℃+60℃ |
| Power tolerance (%) | ±5% |
Mechanical characteristics
| Model | SWB200W
| SWB100W |
| Foldable size | 615*565mm | 615*565mm |
| Lay out size | 2280*565mm | 1135*565mm |
| weight | 5.1kg | 2.8kg |
| Front Cover | ETFE laminated |
| Frame | No |
| Protection Degree | IP67 |
| Cable | 0.9m+ MC4 connector |
| Diode Protection | Yes |
| Qty/CTN | 1pc/Carton
|
