100W Mono solar panels

Collect
  • Solar Panels

SUNWORLD Advantage & Benefits

1.SUNWORLD 5BB design module reduce cell series resistance and stress between cell interconnectors improves module reliability and module conversion efficiency.
2.High efficiency from Taiwan with more than 20%.
3.Anti-reflective and anti-soiling surface reduces power loss from dirty and dust.
4.Excellent mechanical load resistance:Certified to withstand high wind loads(2400Pa) and snow loads(5400Pa).
5.High salt and ammonia resistance


Reliable Quality

1.Factory certify by ISO9001, SGS, CE, ROHS,IEC,TUV certification.

2.Full EL double-inspection ensures modules are defects free

3.Modules binned by current to improve system performance

4.Potential Induced Degradation(PID) Resistant

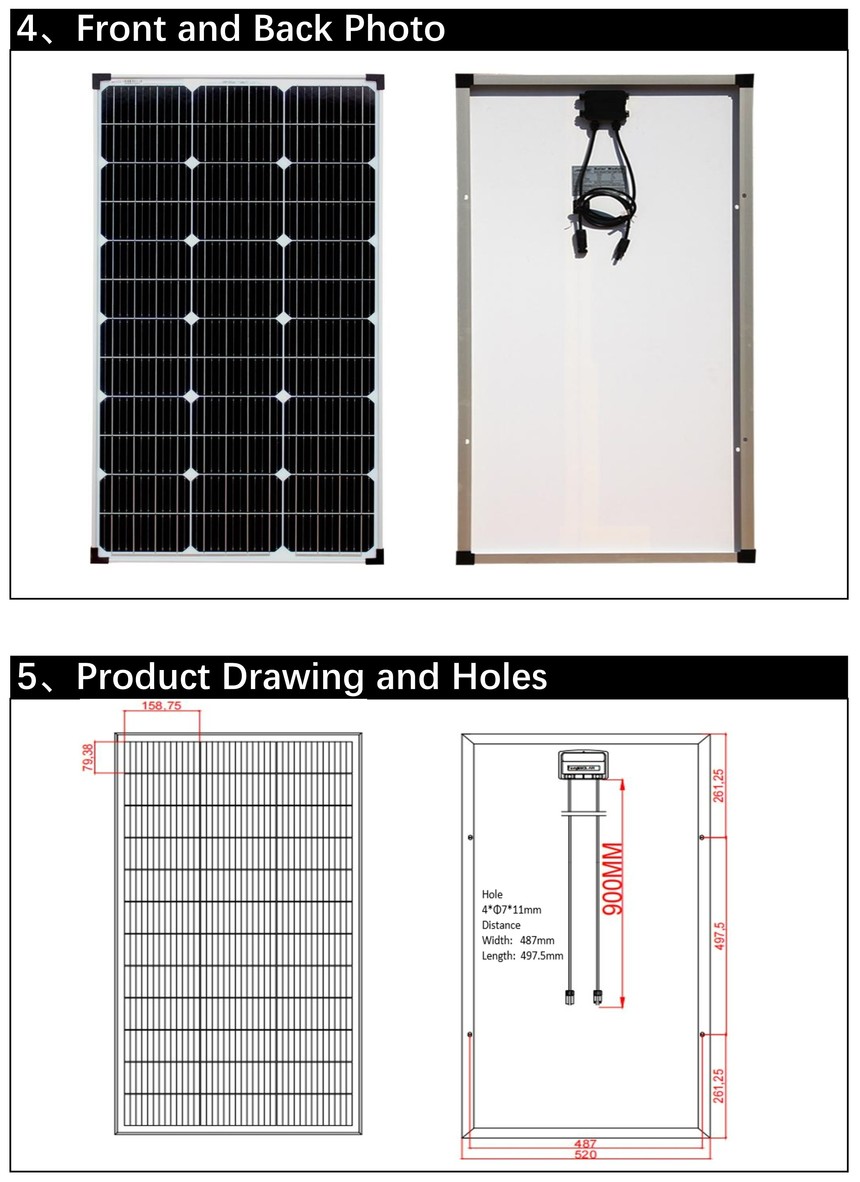

Solar Panels Photo
Electrical characteristics
Module   ModelSWM20W
Max-Power Pm(W)20W
Moudle Efficiency21%
Max-Power Voltage   Vm(V)18.58V
Max-power current   Im(A)1.07A
Open-circuit voltage   Voc(V)22.32V
Short-circuit   current Isc(A)1.13A
Max-system voltage   (VDC)600V
Series fuse rating   (A)6A
Application ClassA
Operating   temperature (℃) -40℃+85℃
Power tolerance (%)±5%
Mechanical characteristics

Dimension   of solar module395*345*17*17mm
Type of solar cell156*156 Mono Cells
Lay up of solar cell4*9=36 pcs
Front Cover3.2mm Temper Glass
FrameAluminun Frame 17mm
Protection DegreeIP67
CableNo
Diode ProtectionYes
Weight1.6 Kg
Qty/CTN2 pc/Carton

Packing & Delivery


download .png
SunWorld 100W Mono Solar Panels

need quote.jpg

Contact :Brian

Sample Availability: IN STOCK.

Email:sales1@ecosolarpanel.com  Skype: ecosunworld

Wechat:+86-15916922738
