200w mono solar panel

Collect
  • Solar panel

SUNWORLD Advantage & Benefits

1.12 years Solar Panel Manufacture in China
2.Factory Certify by ISO9001, SGS, CE, ROHS,IEC,TUV certification.

3.Excellent  anti-PID performance (EL) tests guarantee fault-free modules

4.2 manufacturing Basis, full automated production facilities.
5. High efficiency cell > 20% Sellected from German Qcells, USA SunPOWER,Taiwan Motech.


Solar Panels Photo

200W 1200x990.jpg

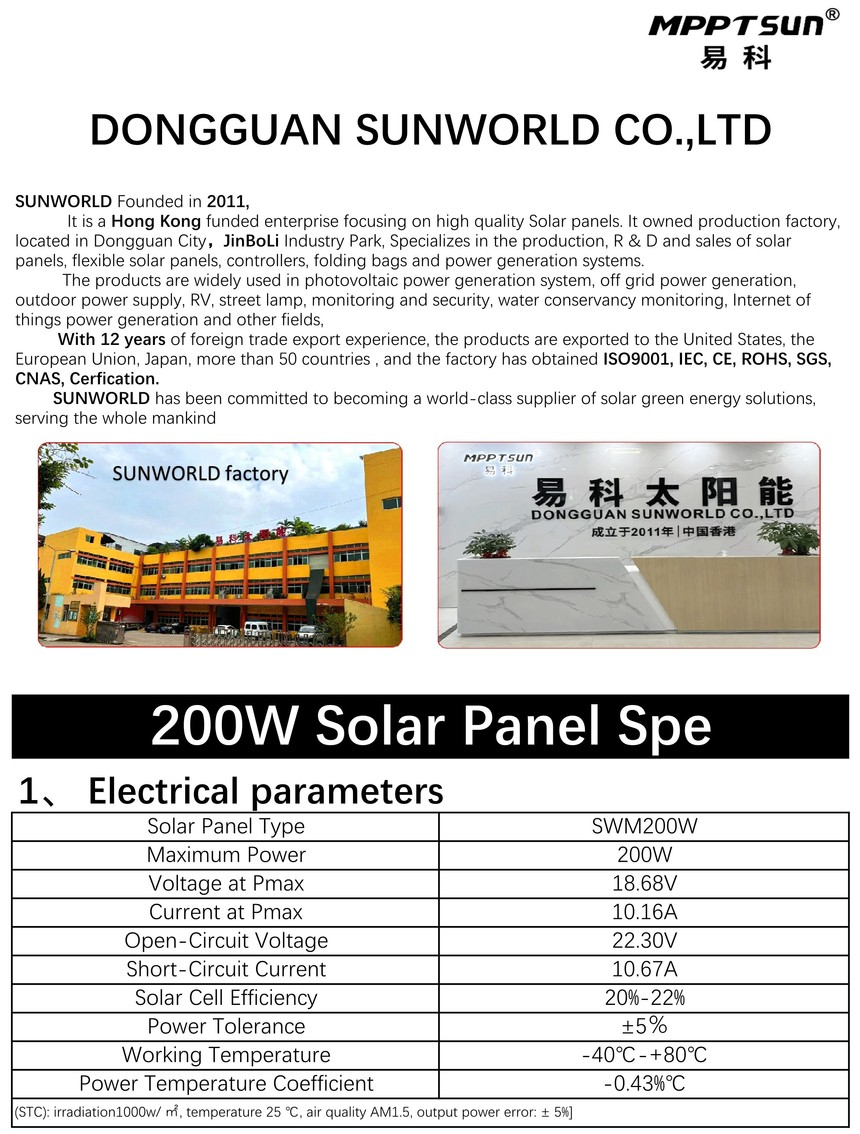

Electrical characteristics
Module   ModelSWM200W
Max-Power Pm(W)200W
Moudle Efficiency21%
Max-Power Voltage   Vm(V)18.68V
Max-power current   Im(A)10.76A
Open-circuit voltage   Voc(V)22.32V
Short-circuit   current Isc(A)11.33A
Max-system voltage   (VDC)1000V
Series fuse rating   (A)16A
Application ClassA
Operating   temperature (℃) -40℃+85℃
Power tolerance (%)±5%
Mechanical characteristics

Dimension   of solar module1200*990*35*30mm
Type of solar cell156*156 Mono Cells
Lay up of solar cell6*12=72pcs
Front Cover3.2mm Temper Glass
FrameAluminun Frame 35mm
Protection DegreeIP67
Cable90cm+MC4 connector
Diode ProtectionYes
Weight14.2Kg
Qty/CTN2 pc/Carton

Packing & Delivery


download .png
SunWorld 200W Mono Solar Panels

need quote.jpg

Contact :Brian

Sample Availability: IN STOCK.

Email:sales1@ecosolarpanel.com  Skype: ecosunworld

Wechat:+86-15916922738


×
