10W Mono Solar Panel

Collect
  • Solar pan

SUNWORLD Advantage & Benefits

1.SUNWORLD 5BB design module reduce cell series resistance and stress between cell interconnectors improves module reliability and module conversion efficiency.
2.High efficiency cell from Taiwan with more than 20%.
3.Anti-reflective and anti-soiling surface reduces power loss from dirty and dust.
4.Excellent mechanical load resistance:Certified to withstand high wind loads(2400Pa) and snow loads(5400Pa).
5.High salt and ammonia resistance


Reliable Quality

1.Factory certify by ISO9001, SGS, CE, ROHS,IEC,TUV certification.

2.Full EL double-inspection ensures modules are defects free

3.Modules binned by current to improve system performance

4.Potential Induced Degradation(PID) Resistant

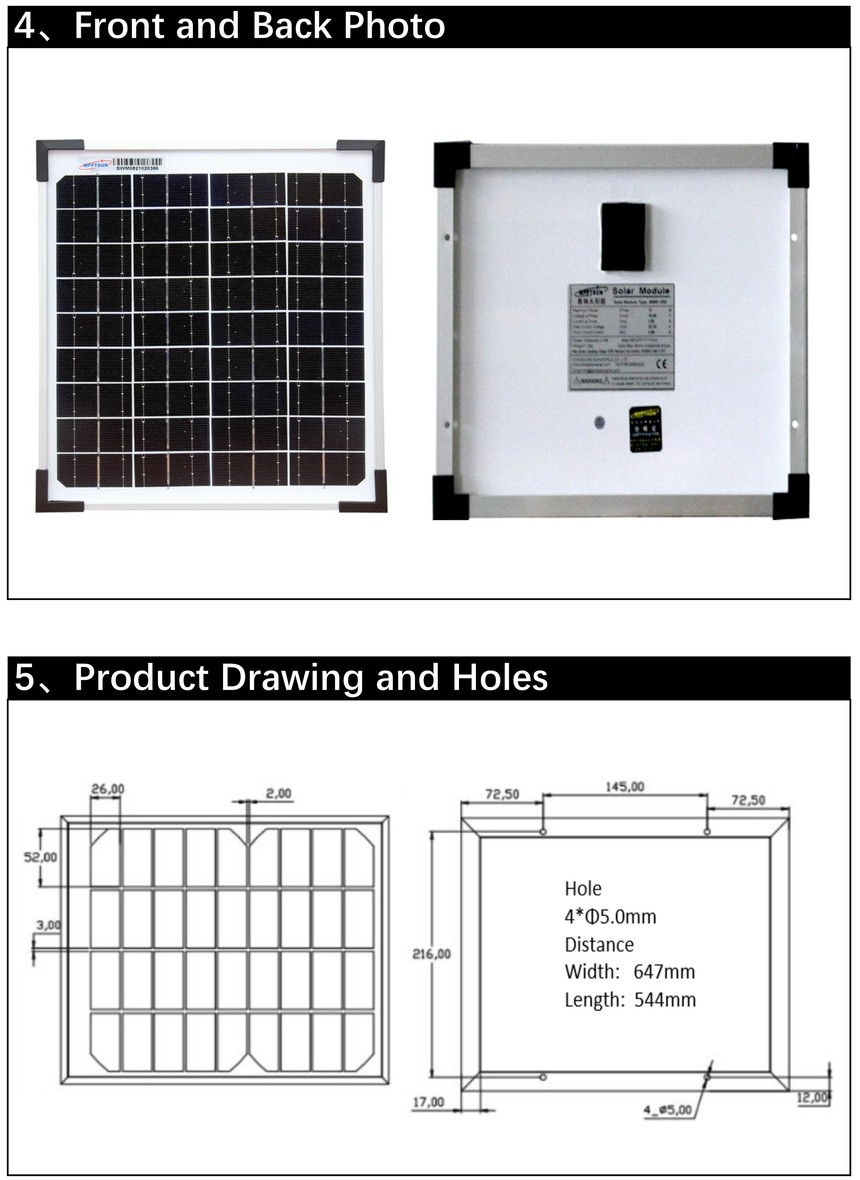

Solar Panels Photo

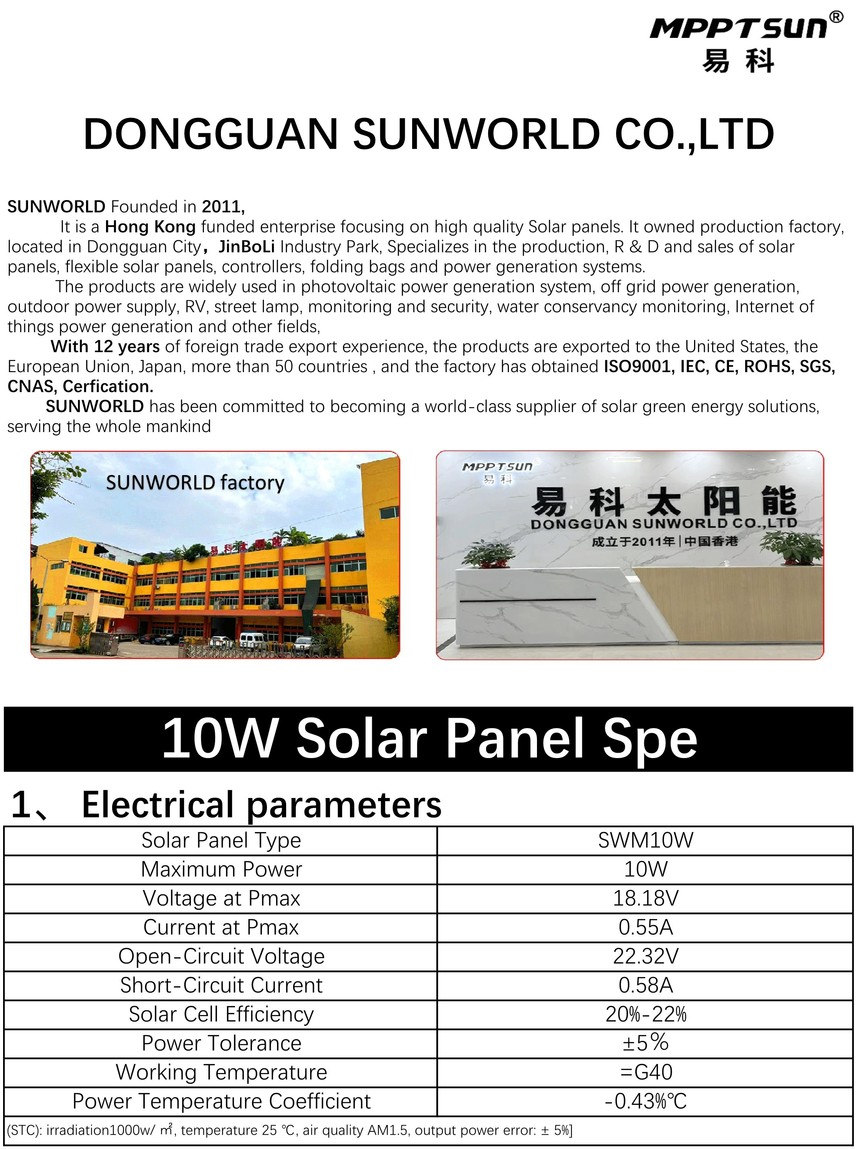

Electrical characteristics
Module   ModelSWM10W
Max-Power Pm(W)10W
Moudle Efficiency21%
Max-Power Voltage   Vm(V)18.58V
Max-power current   Im(A)0.54A
Open-circuit voltage   Voc(V)22.32V
Short-circuit   current Isc(A)0.57A
Max-system voltage   (VDC)600V
Series fuse rating   (A)6A
Application ClassA
Operating   temperature (℃) -40℃+85℃
Power tolerance (%)±5%

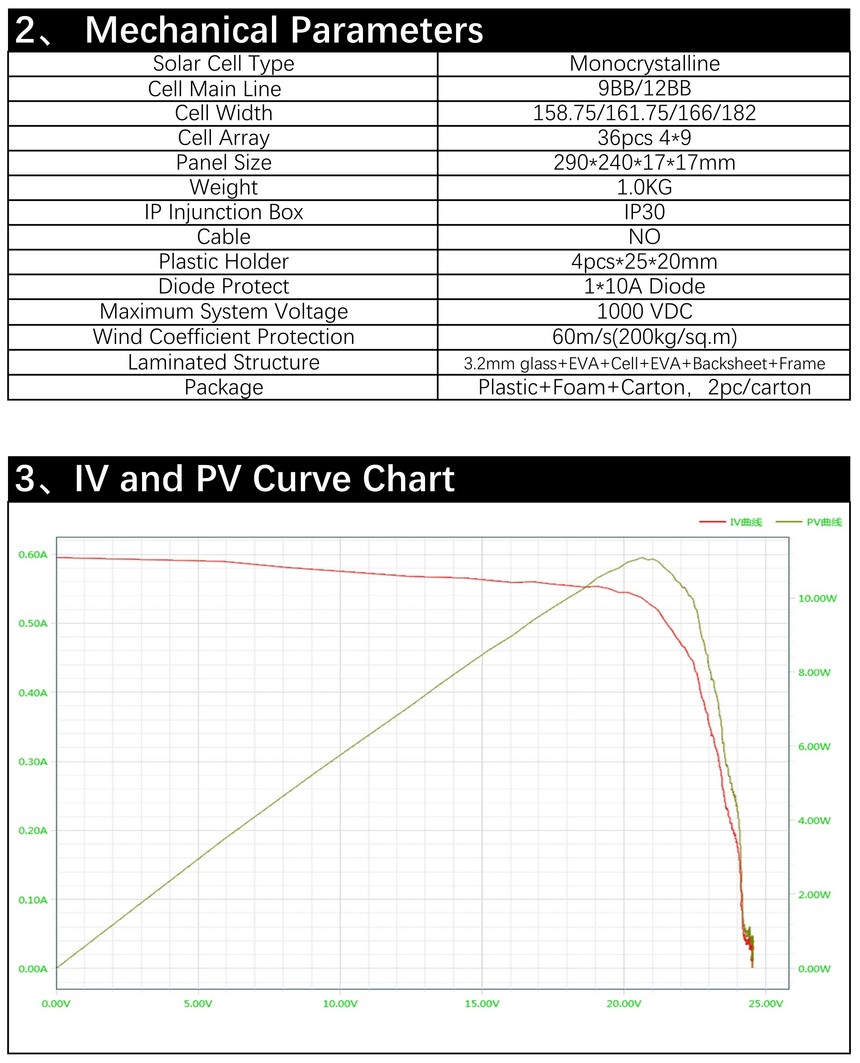

Mechanical characteristics

Dimension   of solar module290*240*17mm
Type of solar cell156*156 Mono Cells
Lay up of solar cell4*9=36 pcs
Front Cover3.2mm Temper Glass
FrameAluminun Frame 17mm
Protection DegreeIP67
CableNo
Diode ProtectionYes
Weight0.9 Kg
Qty/CTN2 pc/Carton

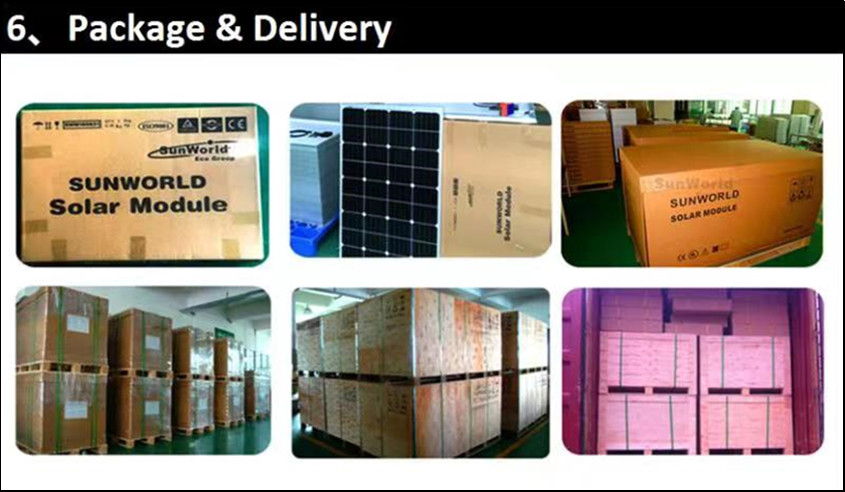

Packing & Delivery


download .png
SunWorld 10W Mono Solar Panels

need quote.jpg

Contact :Brian

Sample Availability: IN STOCK.

Email:sales1@ecosolarpanel.com  Skype: ecosunworld

Wechat:+86-15916922738

×
