40W Mono Solar Panels

Collect
  • Solar panel

SUNWORLD Advantage & Benefits

1.12 years Solar Panel Manufacture in China
2.Factory Certify by ISO9001, SGS, CE, ROHS,IEC,TUV certification.

3.Excellent  anti-PID performance (EL) tests guarantee fault-free modules

4.2 manufacturing Basis, full automated production facilities.
5. High efficiency cell > 20% Sellected from German Qcells, USA SunPOWER,Taiwan Motech.

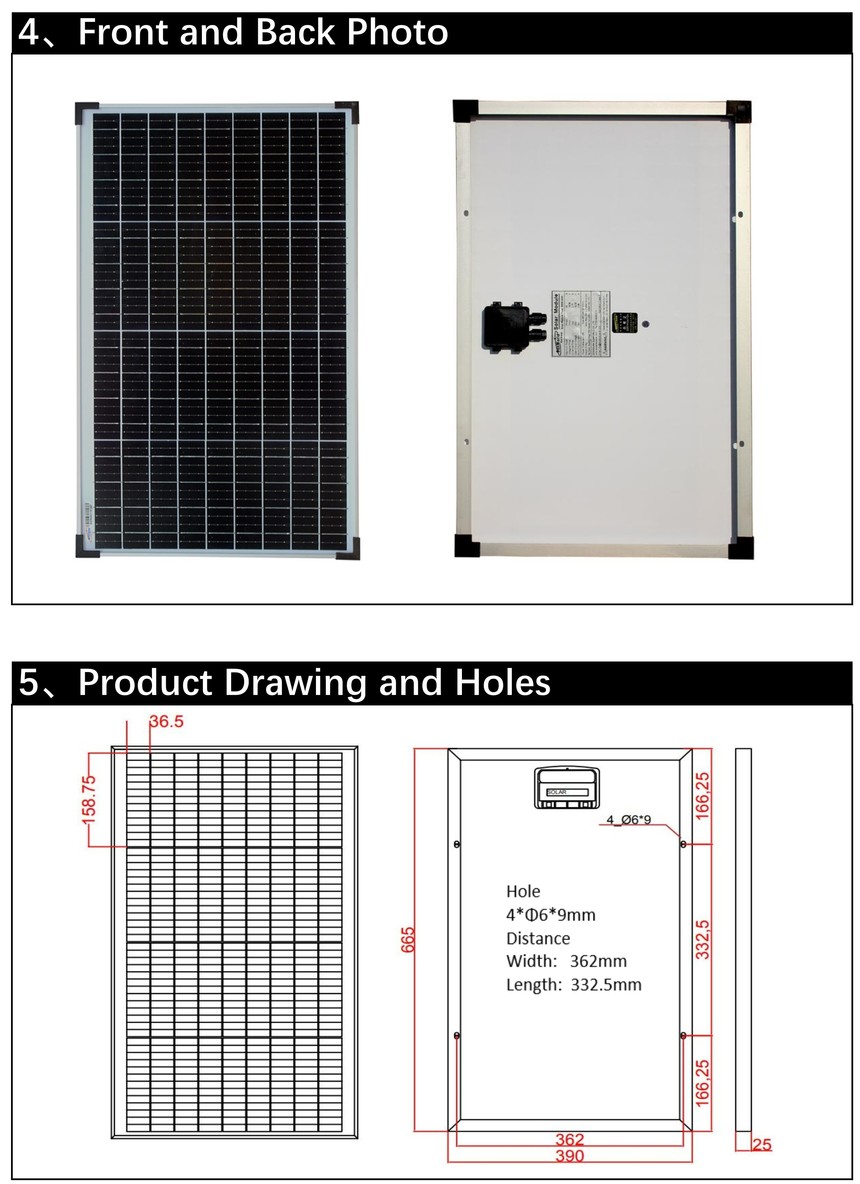

Solar Panels Photo


Electrical characteristics
Module   ModelSWM40W
Max-Power Pm(W)40W
Moudle Efficiency21%
Max-Power Voltage   Vm(V)18.58V
Max-power current   Im(A)2.15A
Open-circuit voltage   Voc(V)22.32V
Short-circuit   current Isc(A)2.26A
Max-system voltage   (VDC)600V
Series fuse rating   (A)10A
Application ClassA
Operating   temperature (℃) -40℃+85℃
Power tolerance (%)±5%

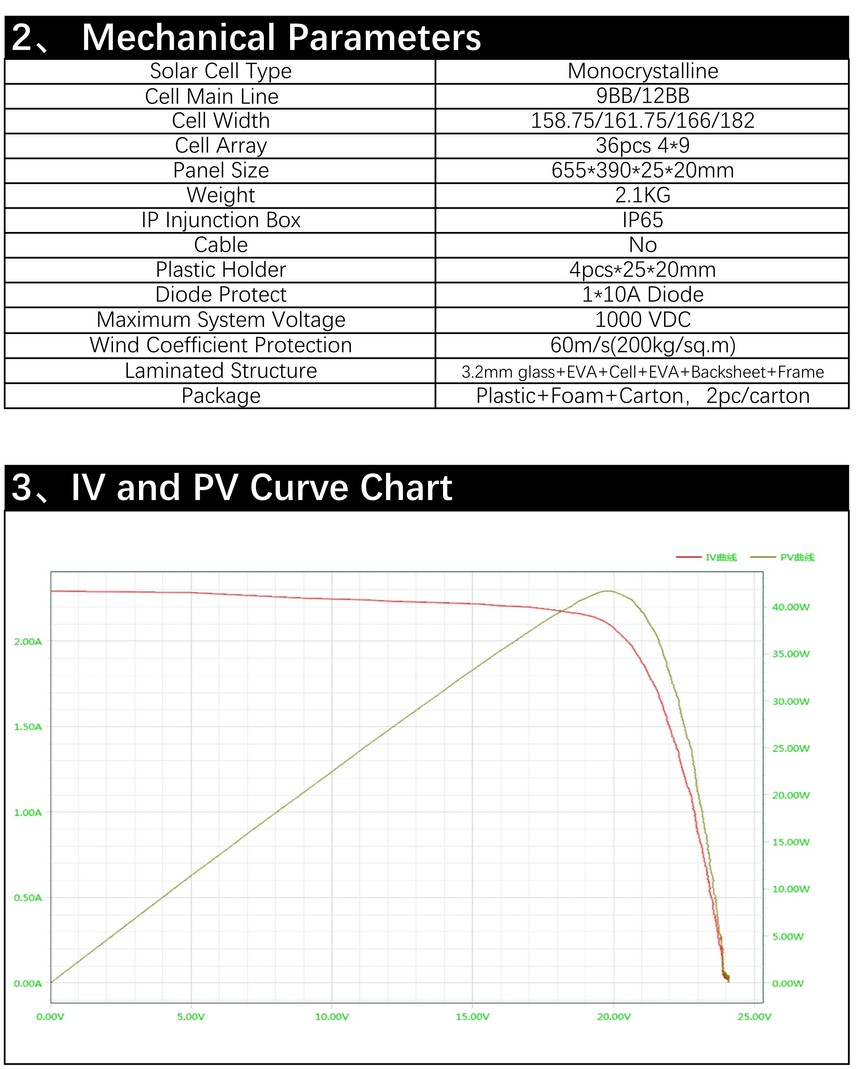

Mechanical characteristics

Dimension   of solar module665*390*25mm
Type of solar cell156*156 Mono Cells
Lay up of solar cell4*9=36 pcs
Front Cover3.2mm Temper Glass
FrameAluminun Frame 25mm
Protection DegreeIP67
CableNo
Diode ProtectionYes
Weight2.9 Kg
Qty/CTN2 pc/Carton

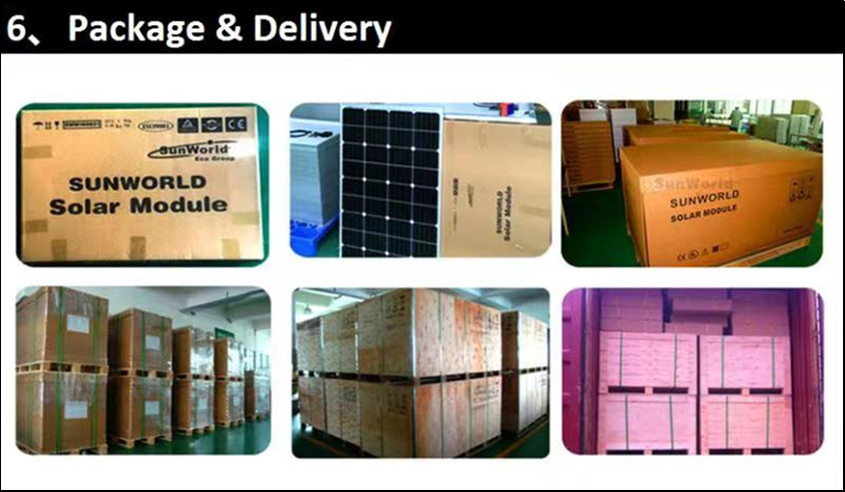

Packing & Delivery


download .png
SunWorld 40W Mono Solar Panels

need quote.jpg

Contact :Brian

Sample Availability: IN STOCK.

Email:sales1@ecosolarpanel.com  Skype: ecosunworld

Wechat:+86-15916922738

×
